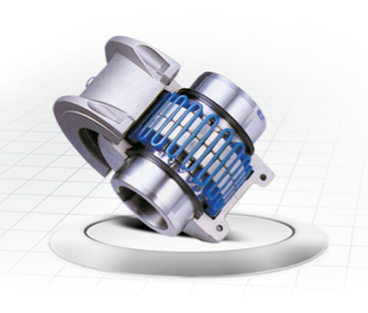

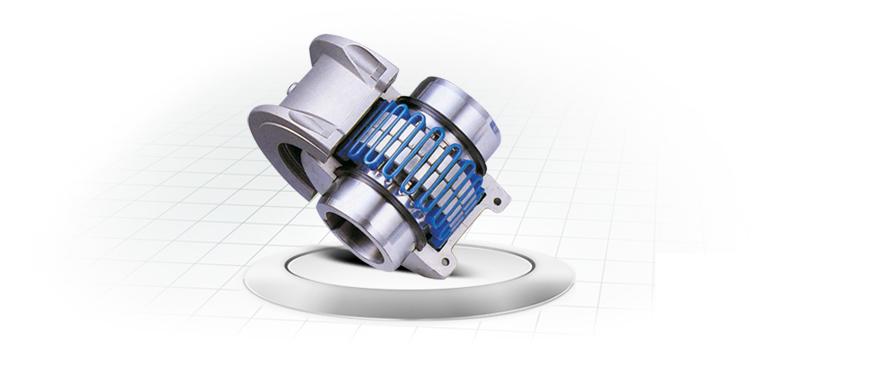

Taper Grid Couplings

-We can get more favorable convenience and cost down by using the PTC Taper Grid Steel Flexible Coupling.

-PARALLEL



-The movement of the grid in the lubricated grooves accom-modates parallel misalign-ment and steel permits full function-ing of the grid-groove action in damping out shock and vibration.

– ANGULAR



-Under angular misalignment, the gridgroove design permits a rocking and sliding action of the lubricated grid and hubs without

any loss of power through the resilient grid.

-END FLOAT



Limited end float of driving and driven members is permitted because the grid slides freely in the lubricated grooves.

-TORSIONAL FLEXIBILITY



Torsional flexibility is the advantage of PTC Taper Grid Couplings, providing flexible accommodation to changing load conditions.
